Headworks Facilities Improvements at Patapsco Wastewater Treatment Plant City of Baltimore SC 938

Our scope included the structural design of a new Influent Screening Facility (18,000 sf footprint) and a Flow Meter Station (2,400 sf), with a 300 MGD capacity as part of the upgrades to Patapsco WWTP.

The lower level of the Screening Facility is a 910,000 gallon cast-in-place concrete tank with channels, and an upper level, cast-in-place concrete slab for operations. The structural system consists of a concrete frame with exterior load-bearing masonry shear walls. The roof consists of steel roof joists with precast concrete plank. The foundation is a concrete mat slab on driven concrete piles. The project also includes the structural analysis of the existing 24,200 sf steel framed Grit Building for the removal of the exterior walls.

Read More

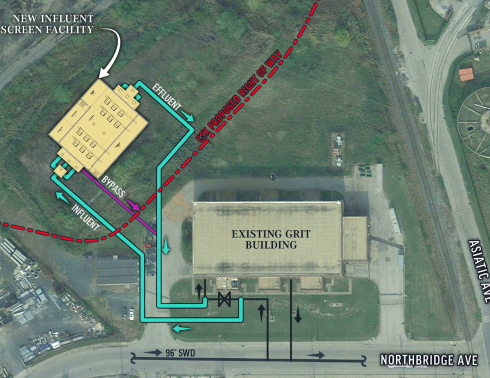

Patapsco Headworks partial Site Plan

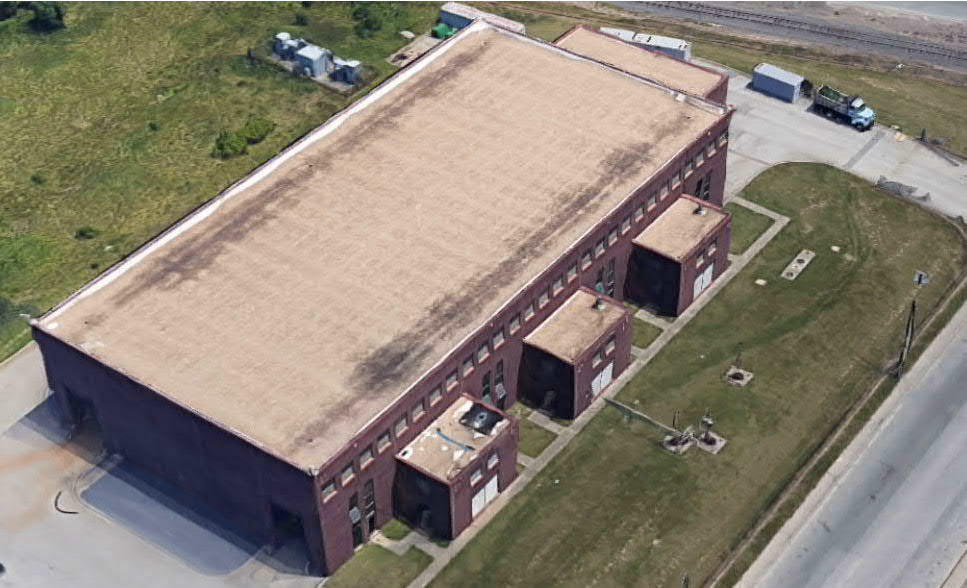

Patasco Headworks CGI Rendering
