Cedar Lane Pumping Station

Project Status:
Complete
Budget:
$4,685,000
Address:
6040 Cedar Lane (corner of Hilltop Rd.)
Columbia, MD 21044

Provided structural engineering services for a new, concrete framed water pumping station. The station is approximately 4,500 sf and has a capacity of 4 MGD. The station provides a backup water supply to increase reliability in the 630 West pressure zone.

The scope of work included structural engineering for a single story pumping station with a lower level basement. Responsible for the design of all structural elements, which included: concrete basement walls, base slab, elevated framing, crane support columns, masonry walls, precast concrete ceiling, and development of loading diagrams for a light-gage metal truss roof.

Performed structural calculations. Determined the live and dead gravity loads, and wind, seismic, and lateral loads below grade. Performed calculations utilizing TEDDS and Staad Pro. Prepared plans and details using REVIT.

Performed Construction Administration Services including review of submissions, change orders and RFIs. Prepared as-built plans.

Read More

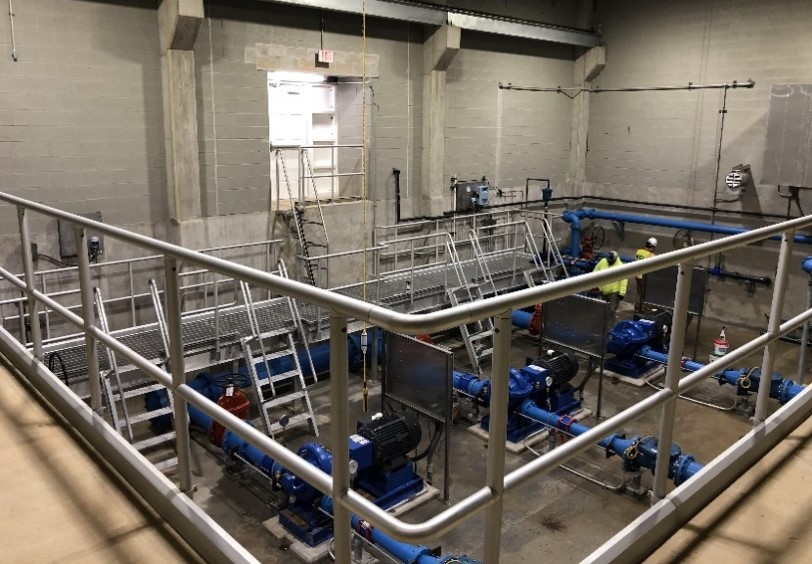

Interior

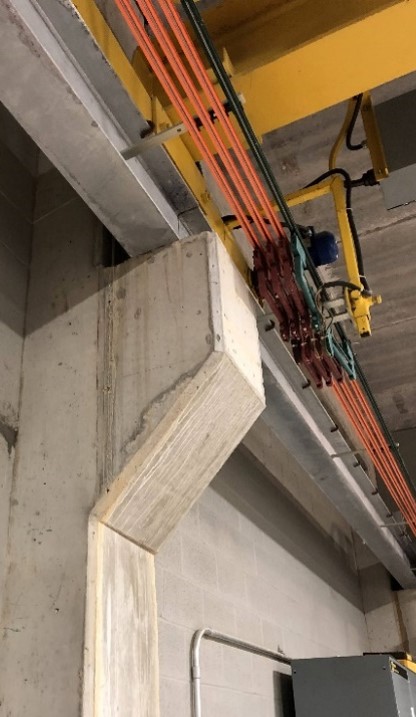

Structural Detailing

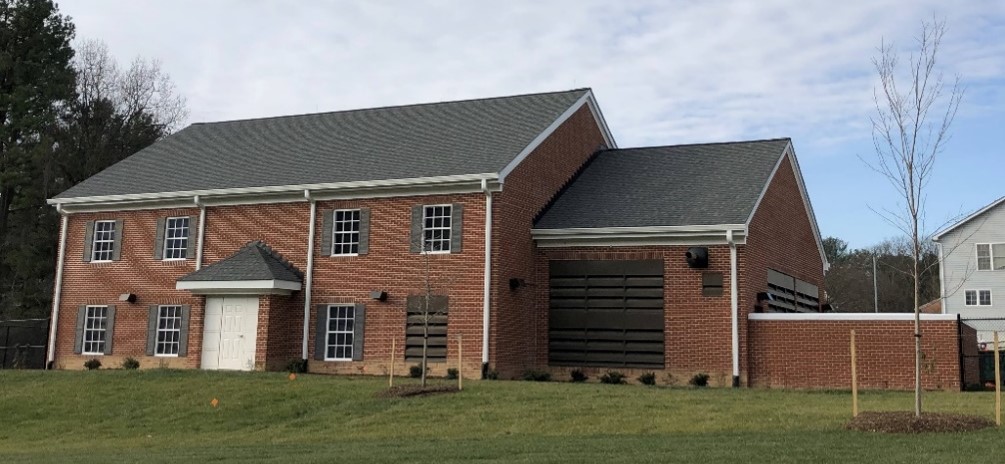

Exterior
